ZK-3525TD Intelligent Rigid Box Making Machine


InstructionRigid box making machine ZK-3525D adopts double-station forming mechanism, servo control system, programmable motion controller system, vision + robot positioning system, and man-machine interface intelligent system to realize in···

Email: overseas@zhongkecn.com

Whatsapp: +86 18857162580

Inquire Now Hot Machine

Still deciding? Get samples first, Contact US !

  • Descripton

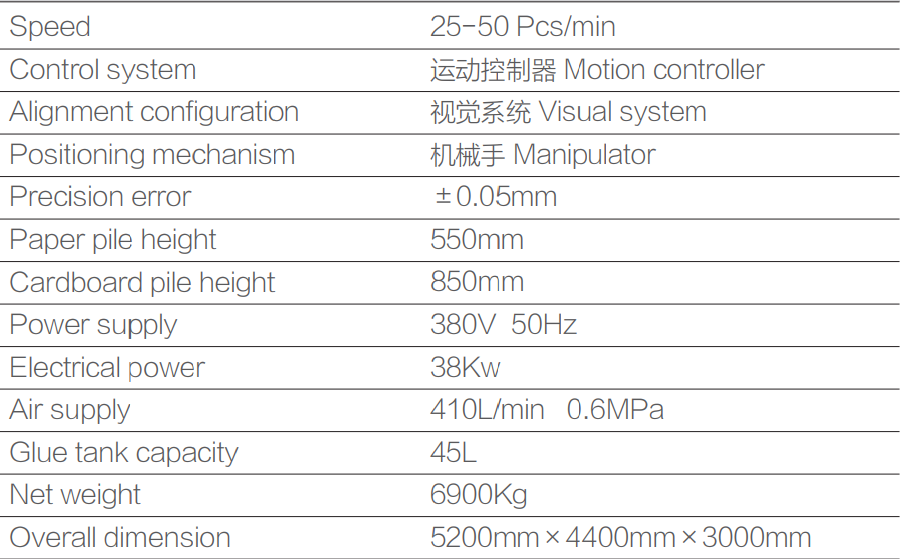

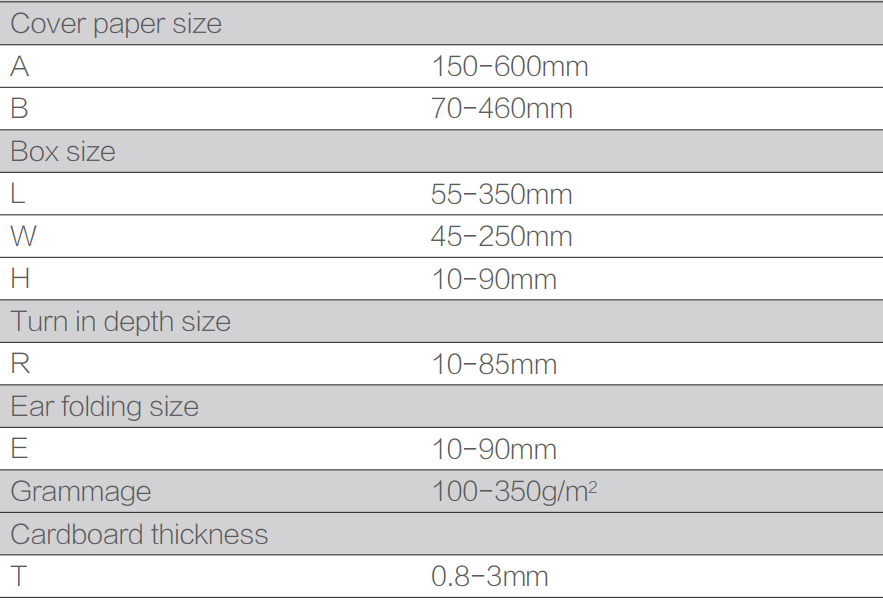

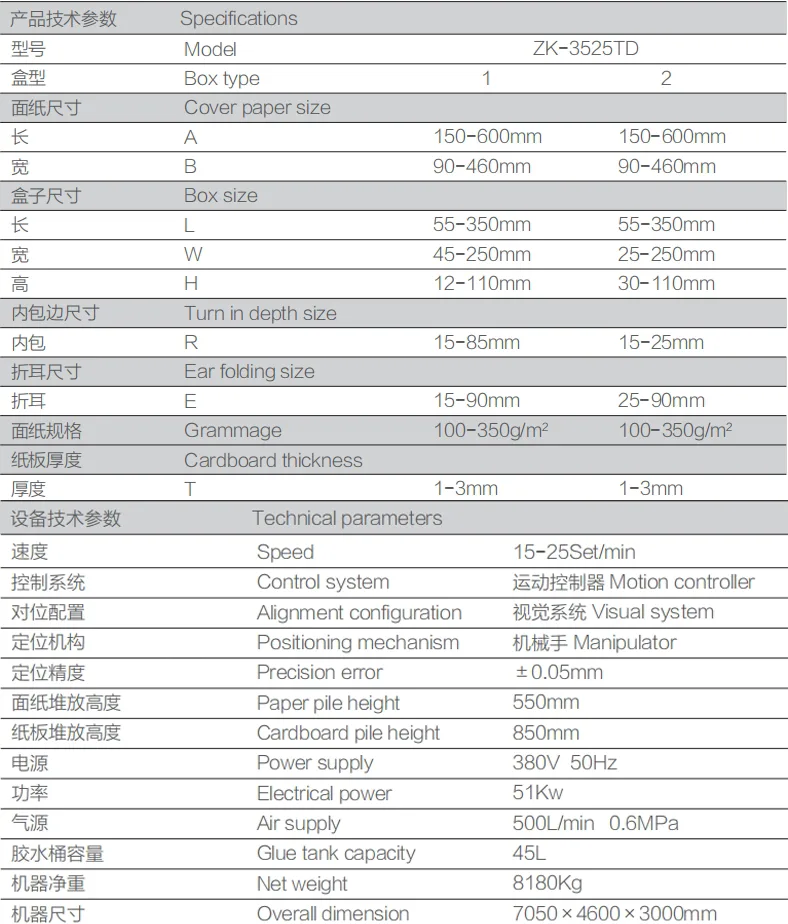

  • Specification
  • Videos

This machine adopts an alternating feeding mechanism, a double forming station mechanism with both rigid top and bottom boxes making, a servo programmable motion controller system, a high pixel vision+robot positioning system, and a human-machine interface intelligent system to achieve intelligent operation functions, digital adjustment methods, and parameterized function settings. These designs makes machine realize higher positioning accuracy , easier adjustment of specifications replacement , more stable operation, and smoother movements.

The paper box is characterized by automatic feeding coverpaper, gluing,cardboard four-corner taping, positioning and fitting, guiding, edge covering, full ear folding, forming and shaping are completed in one circle.This machine can operate in both slipcase box and rigid top & bottom box modes simultaneously , implementing diversified box set on one machine to meet the diverse competitive needs of the market.This machine is widely used in making electronic product packaging boxes, drawer boxes, mobile phone boxes, jewelry boxes, cosmetics boxes, watch boxes, slipcase box and so on.


Note

  • The size of the box is restricted by the size of the coverpaper and box making types.

  • The company does not provide air compressors.

  • Several factors that affect the speed of the machine: box type,raw material, glue and operator proficiency.

  • Due to continuous innovation in product design, the above data is for reference only and are subject to change without notice.

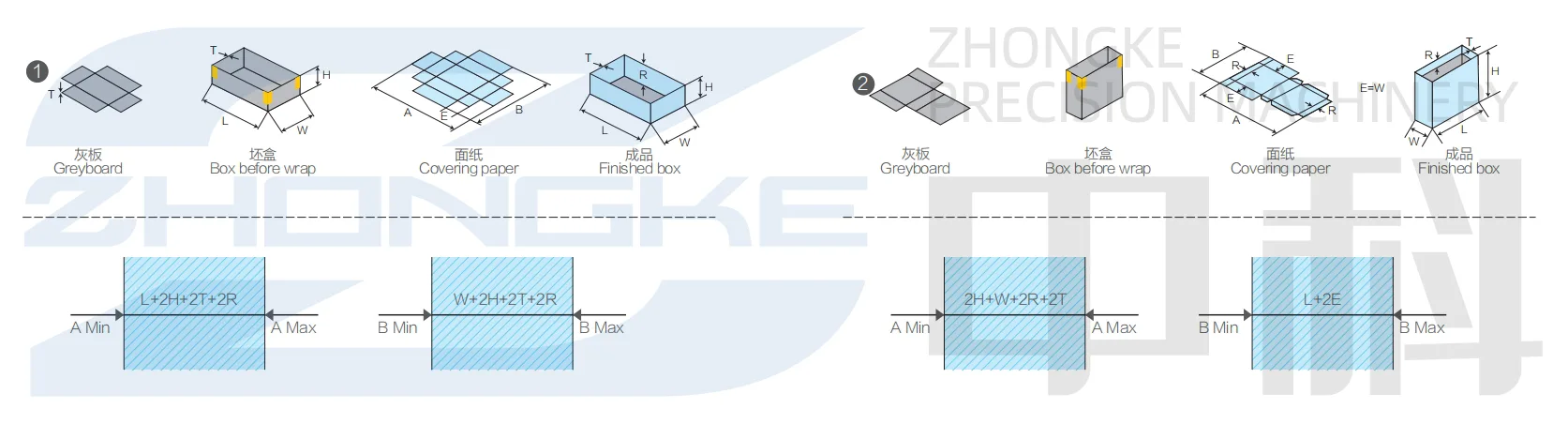

Box Craft Drawing



The video is being shot and produced, you can also visit our YouTube channel to watch it.

YouTube : https://www.youtube.com/channel/UCJWRUMsLD4Oxyv9tAEJt6Sg
