ZK-5540D Fully Automatic Box Folding Machine


One machine, two box types, three process flows1. Adopt Swiss Robatech hot melt adhesive spraying system.2. Multi-functional choice to meet your common needs for ivory board and corrugated board.3. Application field in cosmetic boxes, baked···

Email: overseas@zhongkecn.com

Whatsapp: +86 18857162580

Inquire Now Hot Machine

Still deciding? Get samples first, Contact US !

  • Descripton
  • Specification
  • Videos

One machine, two box types, three process flows

  • Adopt Swiss Robatech hot melt adhesive spraying system.

  • Multi-functional choice to meet your common needs for ivory board and corrugated board.

  • Application field in cosmetic boxes, baked boxes, knitwear boxes, health boxes, etc.


Instruction

This machine adopts servo control system, programmable PLC program control system, photoelectric tracking, Swiss Robatech hot melt adhesive spraying system, touch screen man-machine interface control system, integrated machine electrical to realize automatic paper feeding, glue spraying, folding and the wrapping action is completed at one time.

Mainly suitable for 300-450 ivory board, Kraft paper, B/E/F corrugated paper, and other packaging materials. It is widely used in food, cosmetics, clothing, stationery, toys, fruits, wine boxes, daily necessities, health products, etc.




Note

  • The length of the small box is L=Hx2+20mm, and the width of the cardboard in the forming guider is ≤500mm.

  • The company does not provide air compressors.

  • Several factors that affect the speed of the machine: raw materials, glue and operator proficiency.

  • Due to continuous innovation in product design, the above data is for reference only; subject to change without notice.

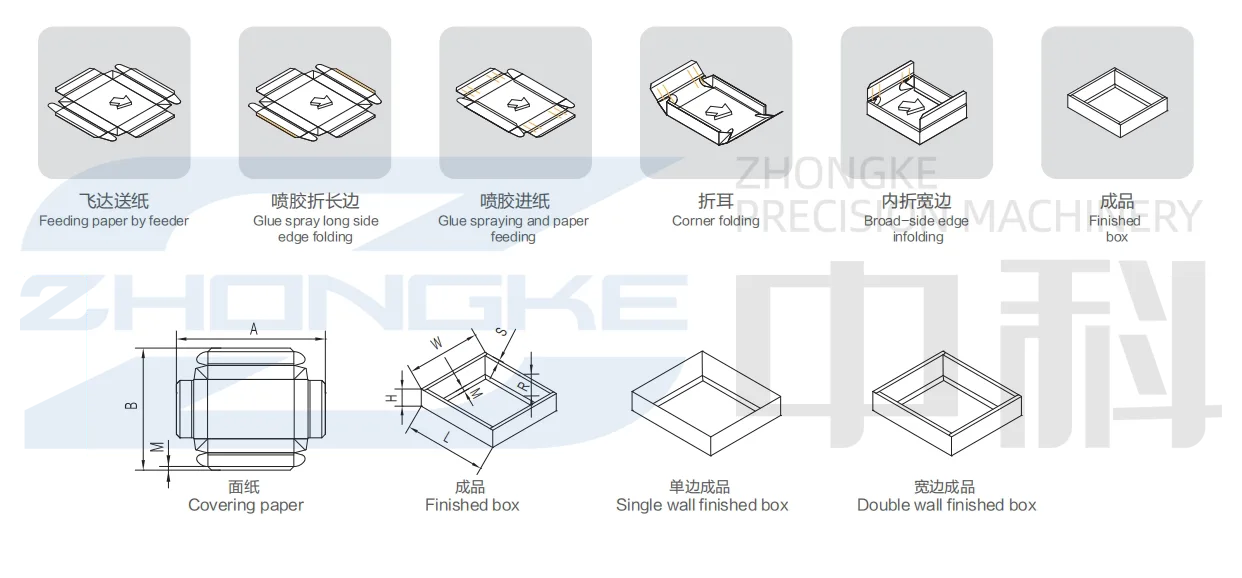

Box Craft Drawing

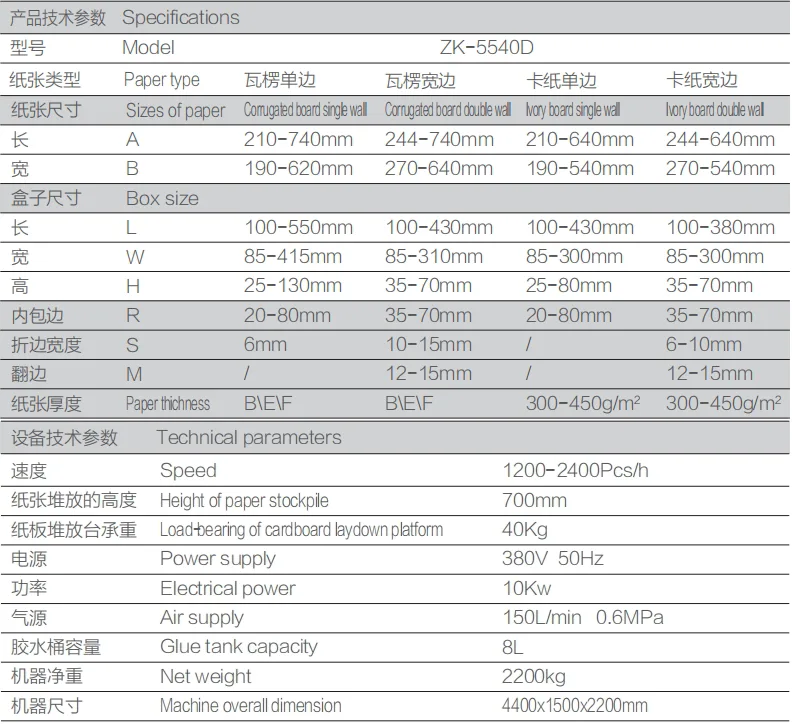

Specification
