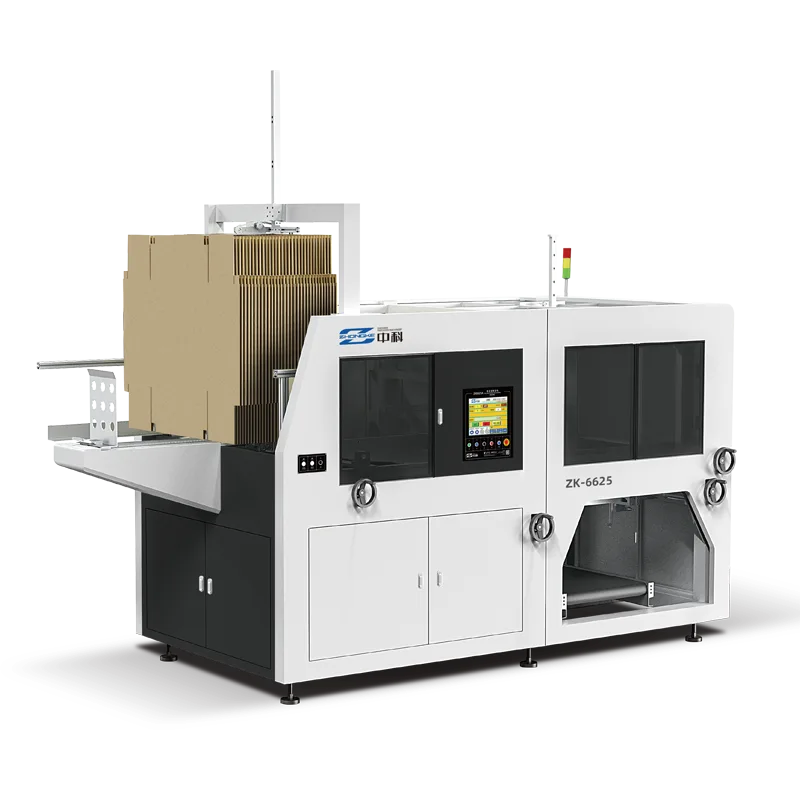

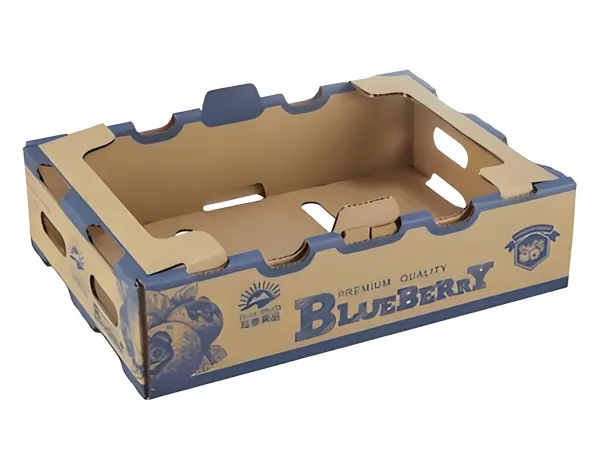

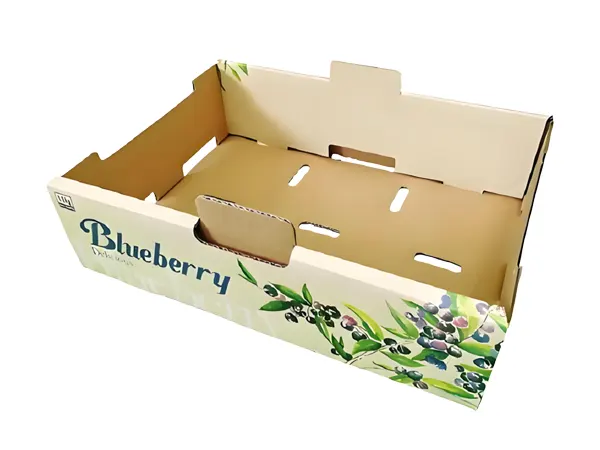

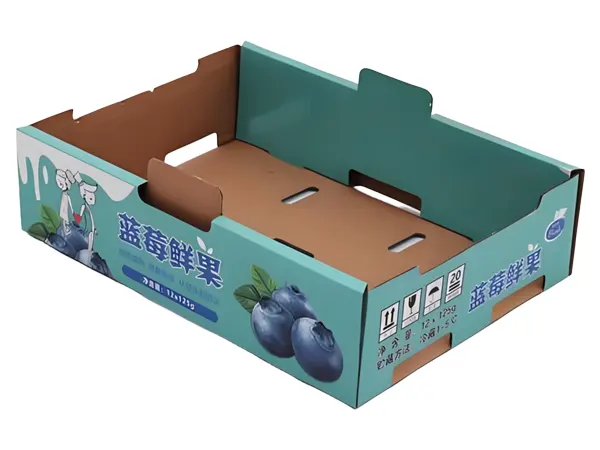

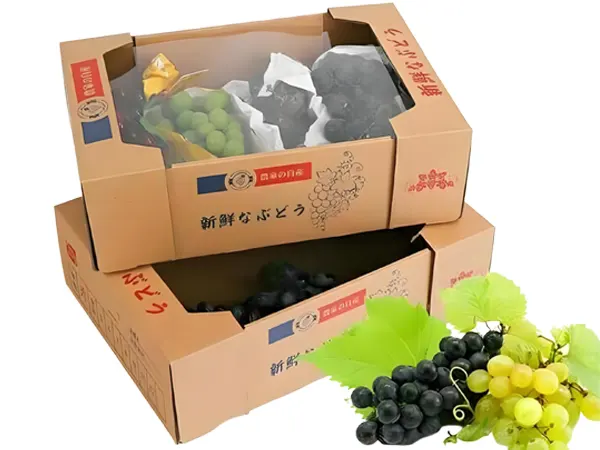

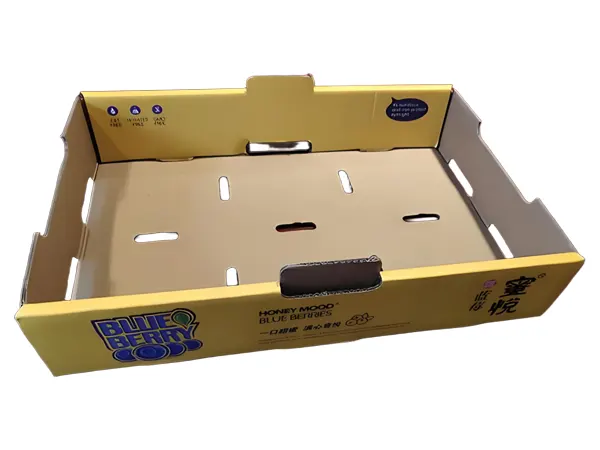

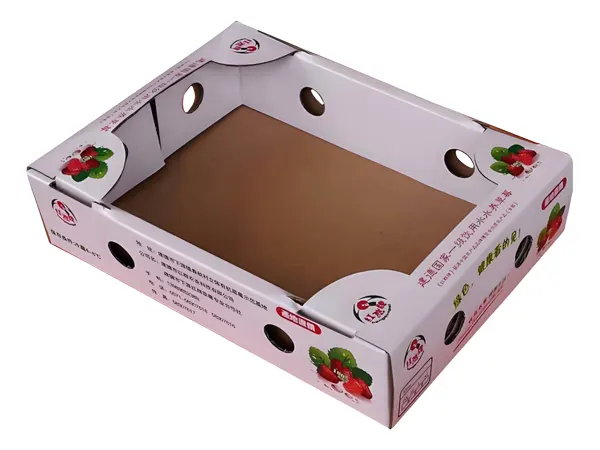

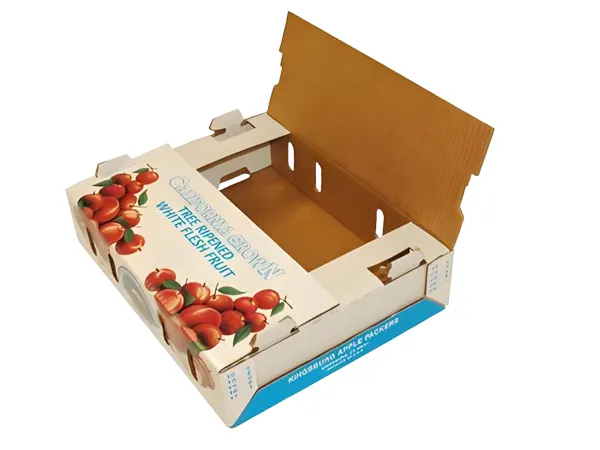

This machine adopts servo control system, programmable PLC control system,photoelectric tracking, hot-melt glue spraying system, air source detection and operation system, touch screen man-machine interface control system,integrating machine and electricity to realize automatic paper feeding and glue spraying , Folding and forming actions can be completed at one time, In addition to making traditional rigid cartons, this machine can also produce other cartons ,and is widely used in the processing and production needs of food packaging boxes, fruit and vegetable packaging boxes and other cartons.
Note

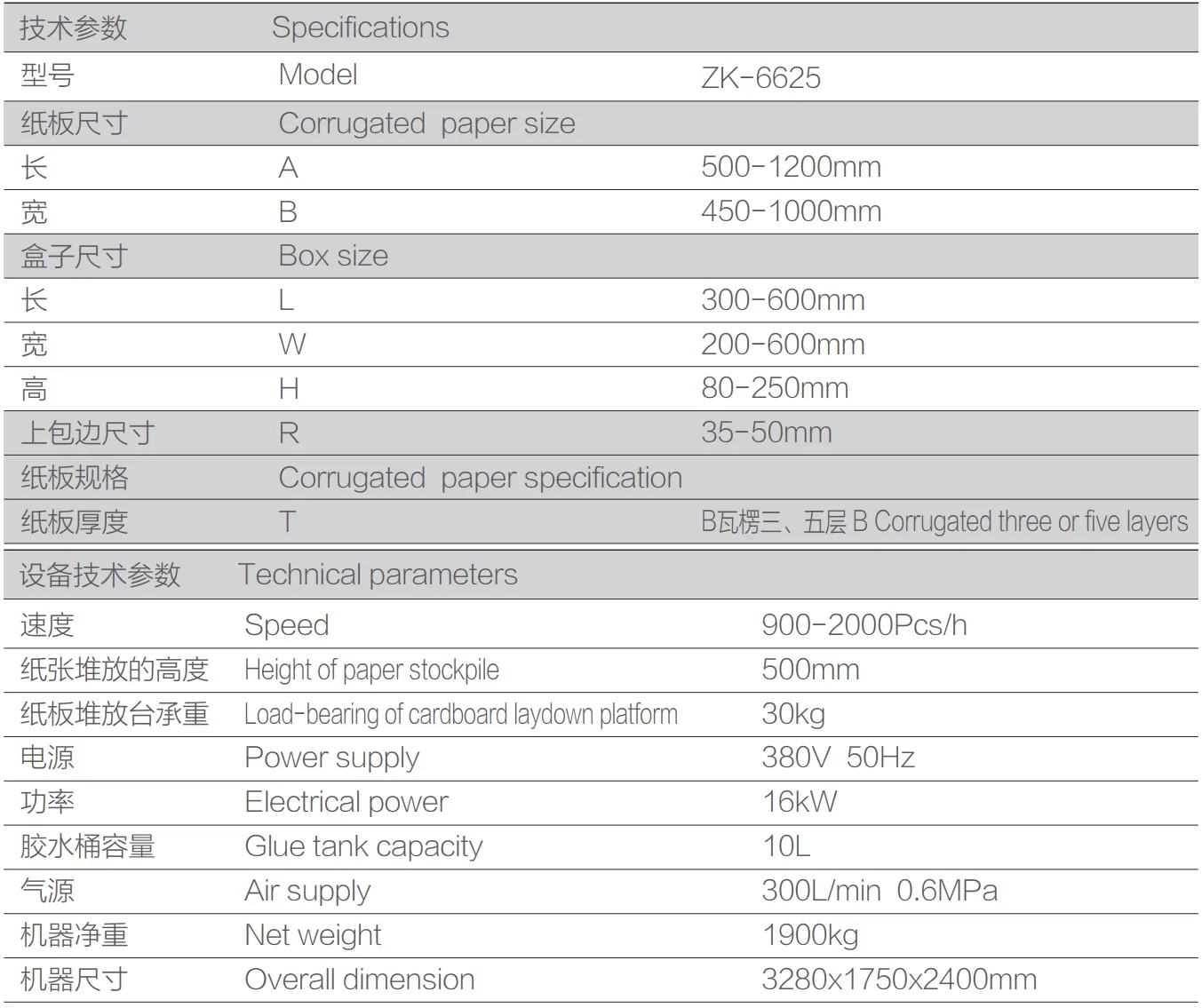

1.Cardboard B expands position to the central paper feed button≥450mm.
2.The size of the box is restricted by the size of the cover paper and box making types.
3.The company does not provide air compressors.
4.Several factors that affect the speed of the machine : box making type,raw material, glue and operator proficiency.
5.Due to continuous innovation in product design, the above data is for reference only and are subject to change without notice

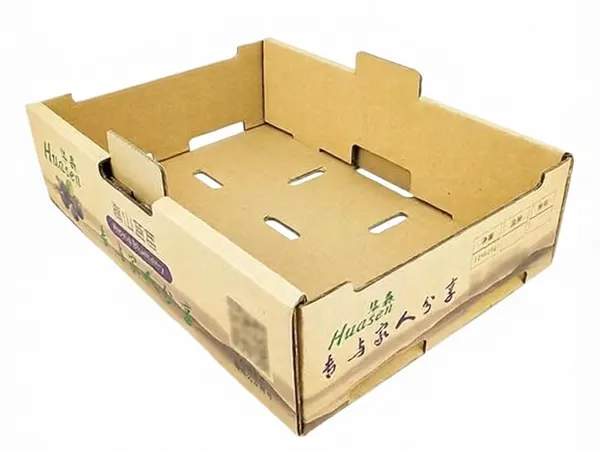

Box Craft Drawing
