High efficiency and precise positioning are your basic requirements for boxes
Equipped with visual positioning system, position error:±0.05.
High production efficiency, more stable operation, durable and low noise.
Satisfying the high-end and non-mark boxes requirement.
Instruction
Rigid box making machine ZK-660FCS adopts servo control system, programmable motion controller system, high pixel vision + robot positioning system, and man-machine interface control system. The forming part uses a combination of servo drive and mechanical cam, which has high production efficiency, more stable operation, more durable and in low noise, realize the characteristics of automatic paper feeding, gluing, positioning and wrapping, full-folding ear and folding-in forming action at one time, satisfying the high-end and non-mark boxes requirements..the production speed can reach 35pcs/min.
It is applicable to the production of high-end rigid boxes, such as business package boxes for electronic products, mobile phone boxes, jewelry boxes, gift boxes, cosmetics boxes, watch box and so on.
Note

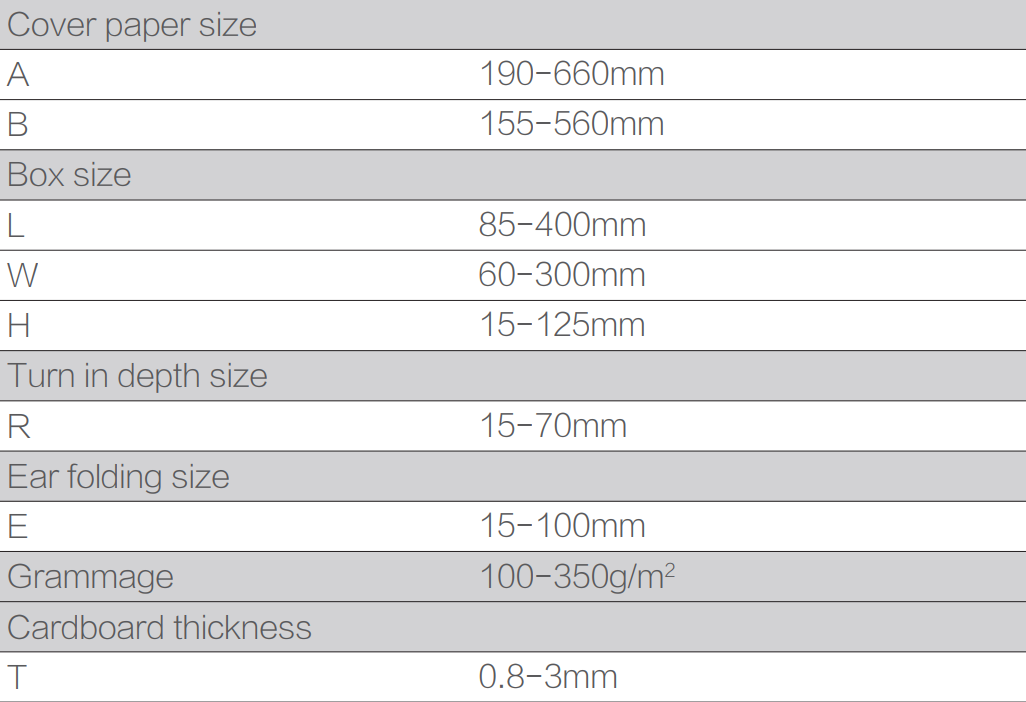

The size of the box is restricted by the size of the cover paper;
Online Viscometer system(optional)
The company does not provide air compressors;
Several factors that affect the speed of the machine: raw materials, glue and operator proficiency;
Due to continuous innovation in product design, the above data is for reference only; and are subject to change without notice.
Box Craft Drawing
