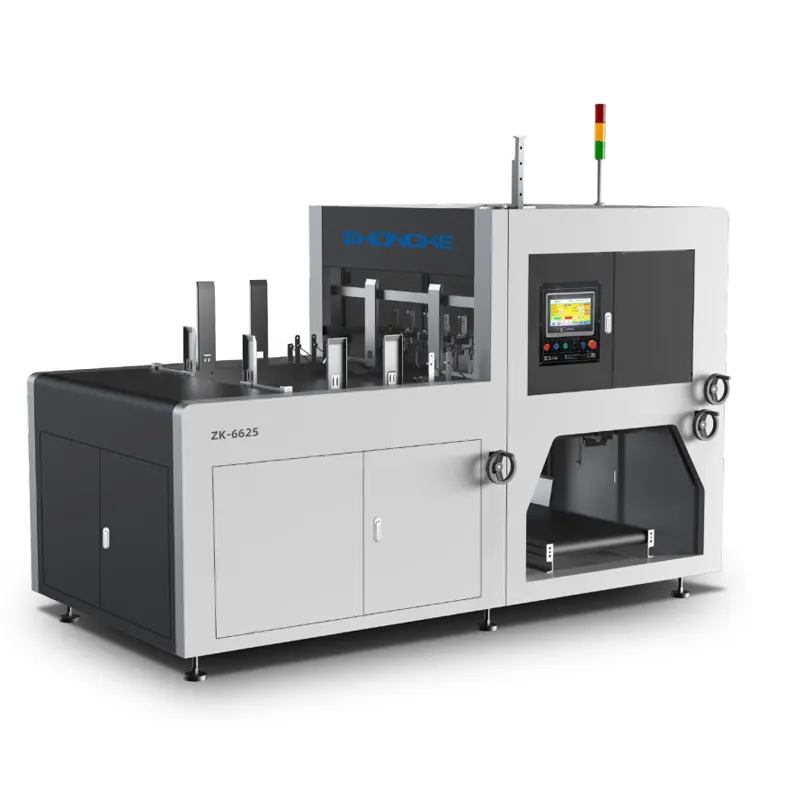

This machine adopts servo control system, programmable motion program control system, High pixel vision+robot positioning system, and man-machine interface control system to realize the characteristics of automatic paper feeding, gluing, positioning and wrapping, full-folding ear and folding-in forming action at one time, satisfying the high-end boxes requirements.
Note
1.The min box length less than 125mm needs add small specifications accessories.
2. The size of the box is restricted by the size of the cover paper.
3. Online viscometer system(optional).
4. The company does not provide air compressors.
5. Several factors that affect the speed of the machine: raw materials, glue and operator proficiency.
6. Due to continuous innovation in product design, the above data is for reference only. and are subject to change without notice.
Box Craft Drawing
